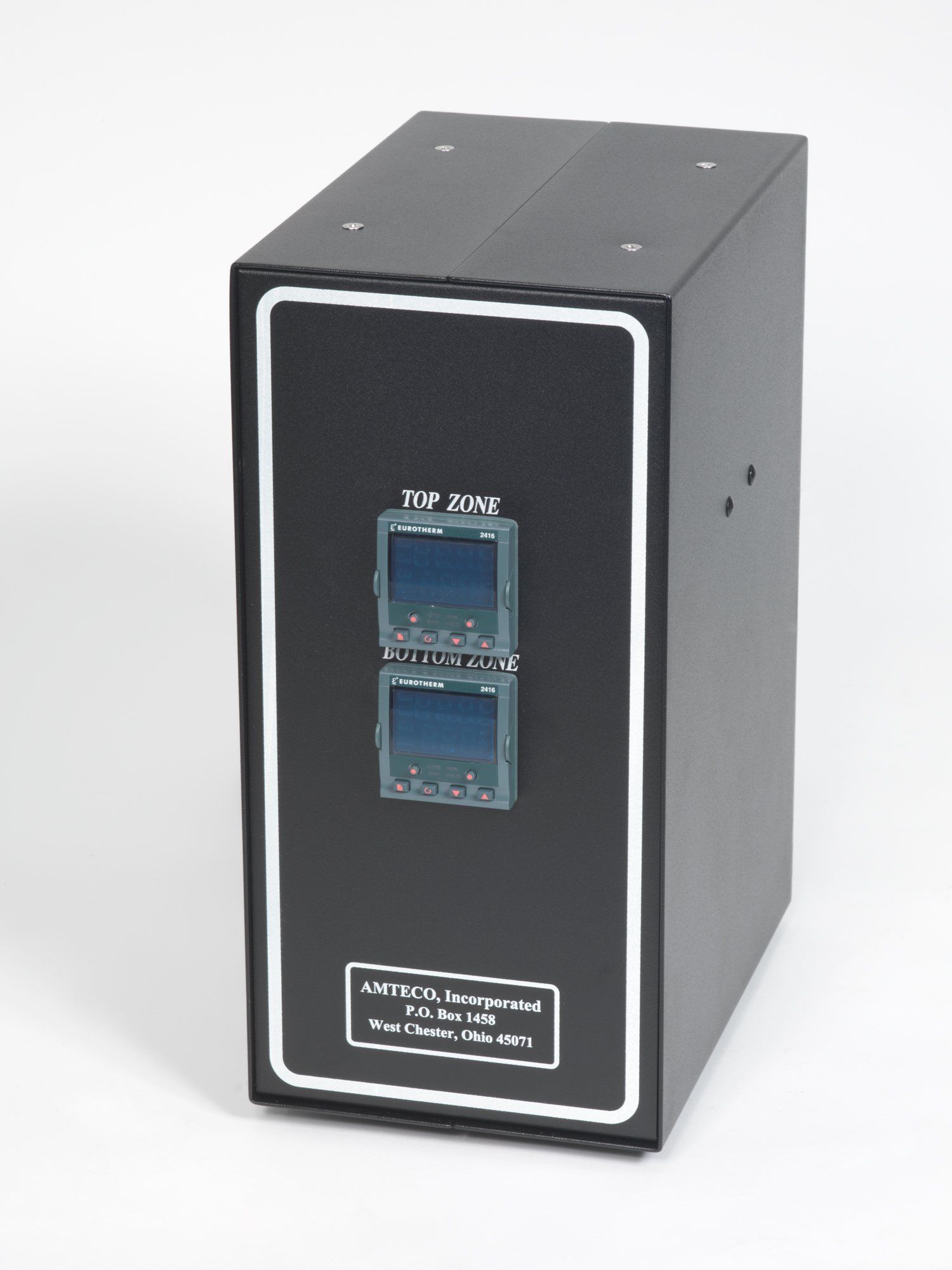

The one, two and three zone furnace controllers include all the cabling needed to connect to our 1400C furnace family. These controllers incorporate high quality components and workmanship providing the capability to power and control the temperature of our furnaces per design requirements.

• Solid enclosure construction and function

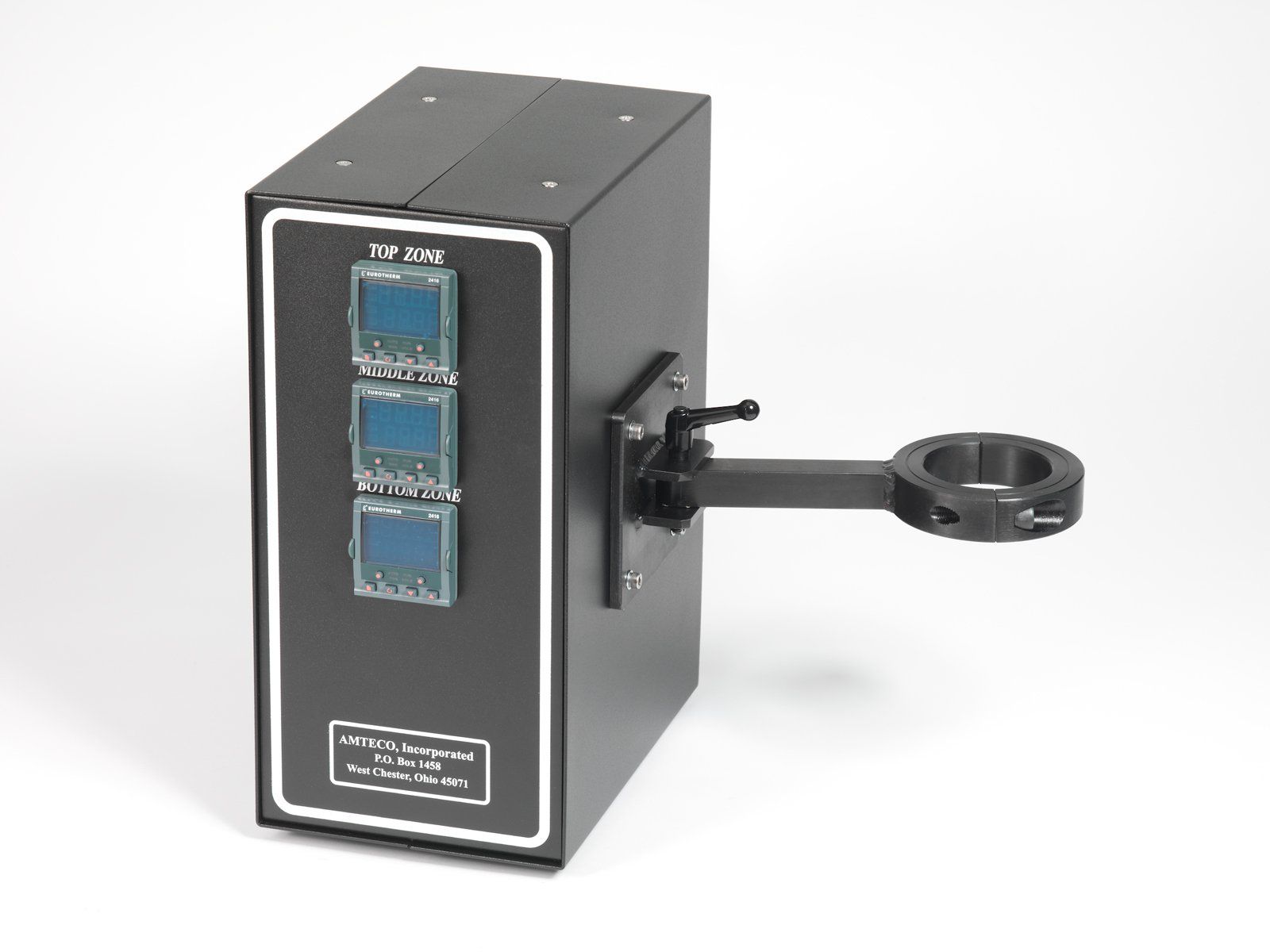

• Enclosure mounts for test frames available for ergonomic and space saving advantage (see photo)
• Simple easy to use controls for immediate plug-and-play capability

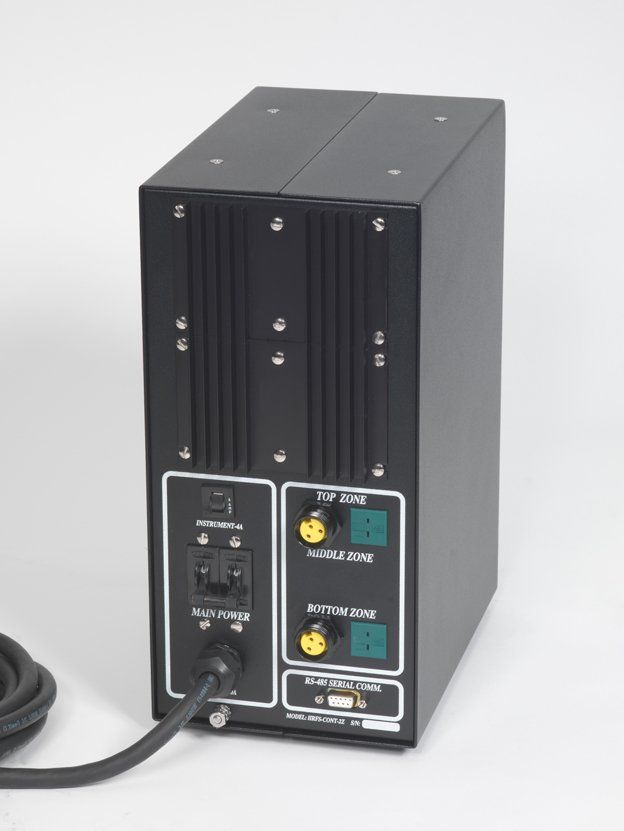

• Optional RS485 communications via rear panel connector
• Main power breaker with additional instrument safety breaker on rear panel
• Normally shipped with a ramp to set-point program, also offers multi segment programming capability
• Thermocouple options include R-S-B and K (specify upon ordering)
• Open TC protection that will remove power to the furnace until the TC is replaced
• Enclosure dimensions: 6” (152.4mm) wide X 12/5” (317.5 mm) X 8” (203.2 mm) deep
• Full scale high latching alarms

Single Zone - Price: $6485.00 base

Two Zone - Price: $8975.00 base

Three Zone - Price: $12690.00 base
