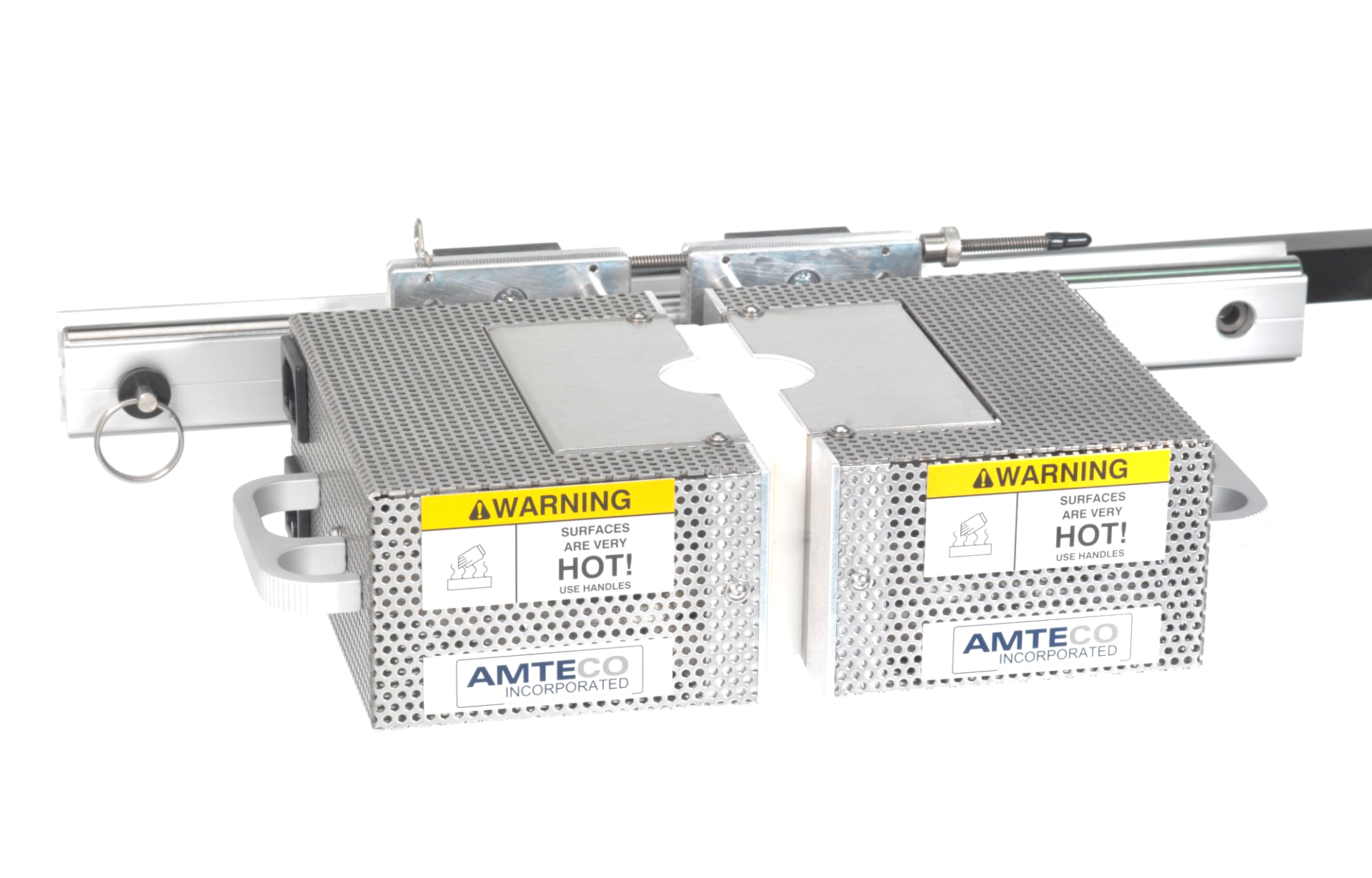

Furnace height of 2.75” (70 mm) total height. Has all the great features of our 1400C furnace line. Also has an available Viewport System if visual / optical interrogation is required. Decades of service life supporting electric crack growth fracture mechanics testing.

• Two independent heating zones for better temperature uniformity control
• 1700C cavity insulation construction. 1.75” (44.5 mm) tall. 12.5 in³ cavity volume
• Split furnace cavity that provides efficient and simple access to the test article
• Simple mounting system that can be customized for virtually any application, vertical and horizontal and LCF or EM frames
• Rapid heating rate capability >150 F/Min. (50C/Min.)
• Durable design made of lab grade materials for long service life
• Designed to work with any of our multi zone 1400C temperature controllers (120 VAC /20 AMP supply outlet required)

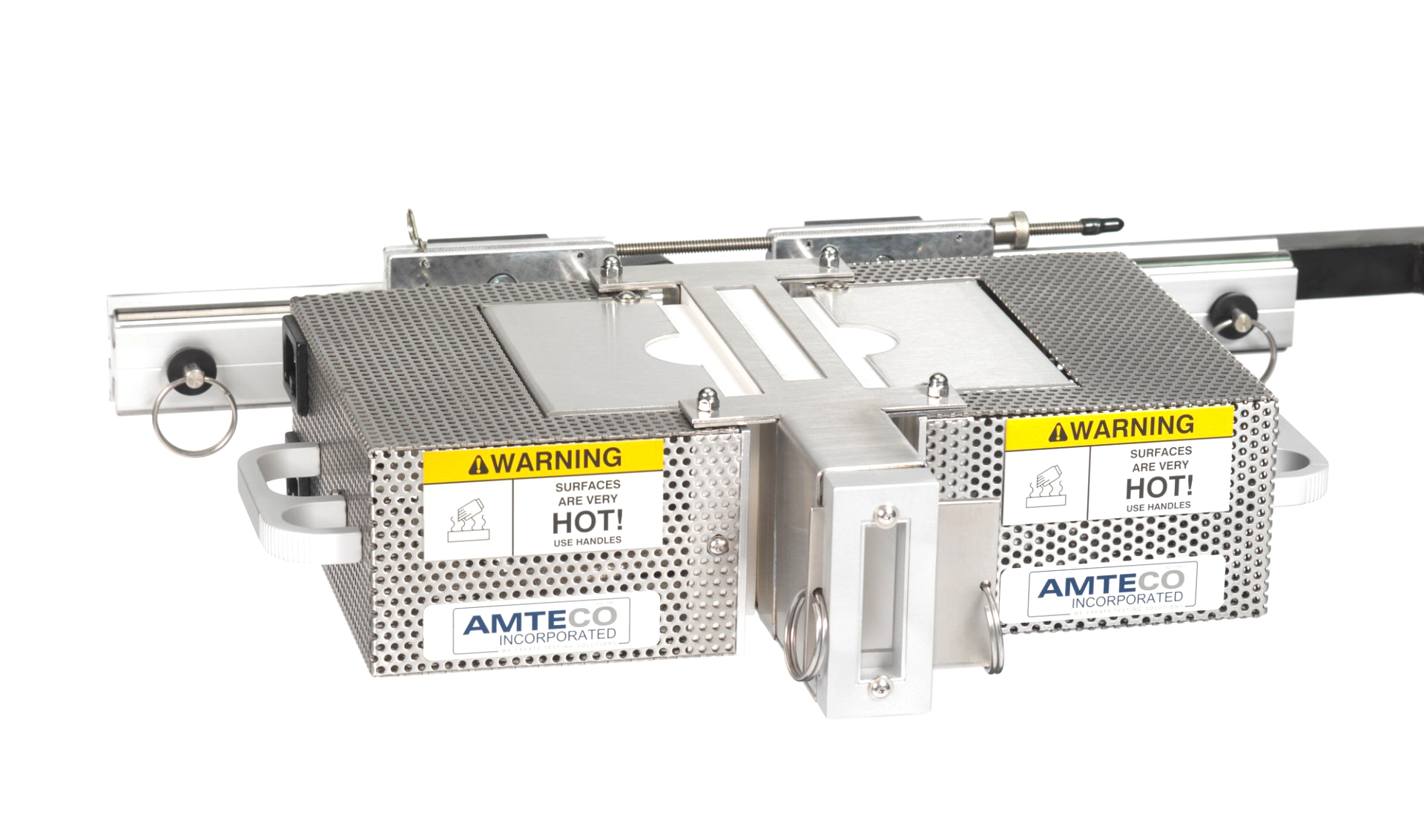

• Shown also with optional view port

Price: $6975.00 base
